718/P20 Mould Steel Alloy Steel Die Steel Special Steel, tool steel bar, DIA16-550mm, Small MOQ
APPLICATIONS: Inserts, cores, and cavities for die casting dies, die casting shot sleeves, hot forging dies, extrusion dies, and plastic mold cavities and components that require high toughness and excellent polishability.
Chemical Composition(%):
C: 0.32-0.45
Si: 0.80-1.20
Mn: 0.20-0.50
P: max. 0.025
S: max. 0.025
Cr: 4.75-5.50
Mo: 1.10-1.75
V: 0.80-1.20
Cu: max. 0.030
Common Size: Round bars: Dia. 80-600mm Plates: Thickness: 40-350mm Width: 100-1000mm, Length: 2m-6m.
Delivery condition: EAF+LF+VD+(ESR), forged, anealed, UT tested, peeled or machined.
Hardness HBW: < =235HB
Tolerance: 0/+2mm
Forging Ratio: Min 1: 4
Surface: Rounds: Black / grinded / turned Plates: Black / milled
Surface condition: Cracks, decarburisation, burd spots and similar surface defects just within permissible tolerances.
Grain size: ASTM E112 5-8
Inclusion rating:
According to ASTM E45
Heat Treatment:
Forge: At 1050° C-1095° C Cool slowly and anneal then.
Annealing: At 843° C-898° C; Cool slowly in furnace
Stress Relieving: Heat slowly to 566° C-676° C, and then cool in still air.
Hardening: Preheat to 815° C and then heat to 1010° C and hold for 15 to 40 minutes. Air cool (air quench)
TYPE A B C D
THIN 0.5-2.0 0.5-2.0 0.5-2.0 0.5-2.0
THICK 0.5-2.0 0.5-2.0 0.5-2.0 0.5-2.0
Or K4 max. 30 according to DIN 50602
UT Grade: Sep 1921-84 Group 3 Class D/d Qualified.
Delivery time: According to your needs to discuss
Quality assurance: ISO9001: 2008, IQNet, CQC
Product Tags:
|
|

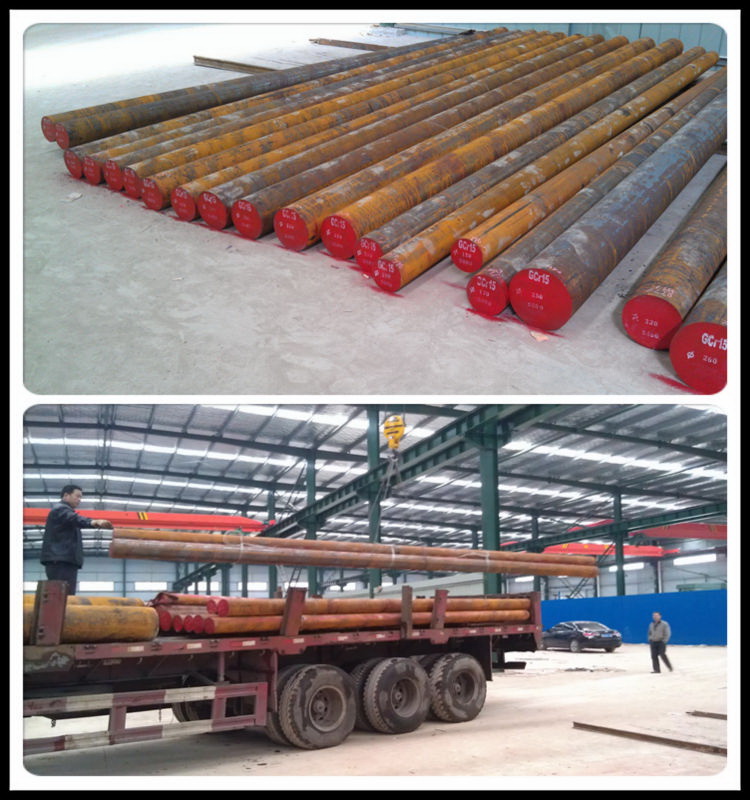

16-550 Mm Diameter Tool Steel Bar 718 / P20 Plastic Tool Steel Material Images
|
